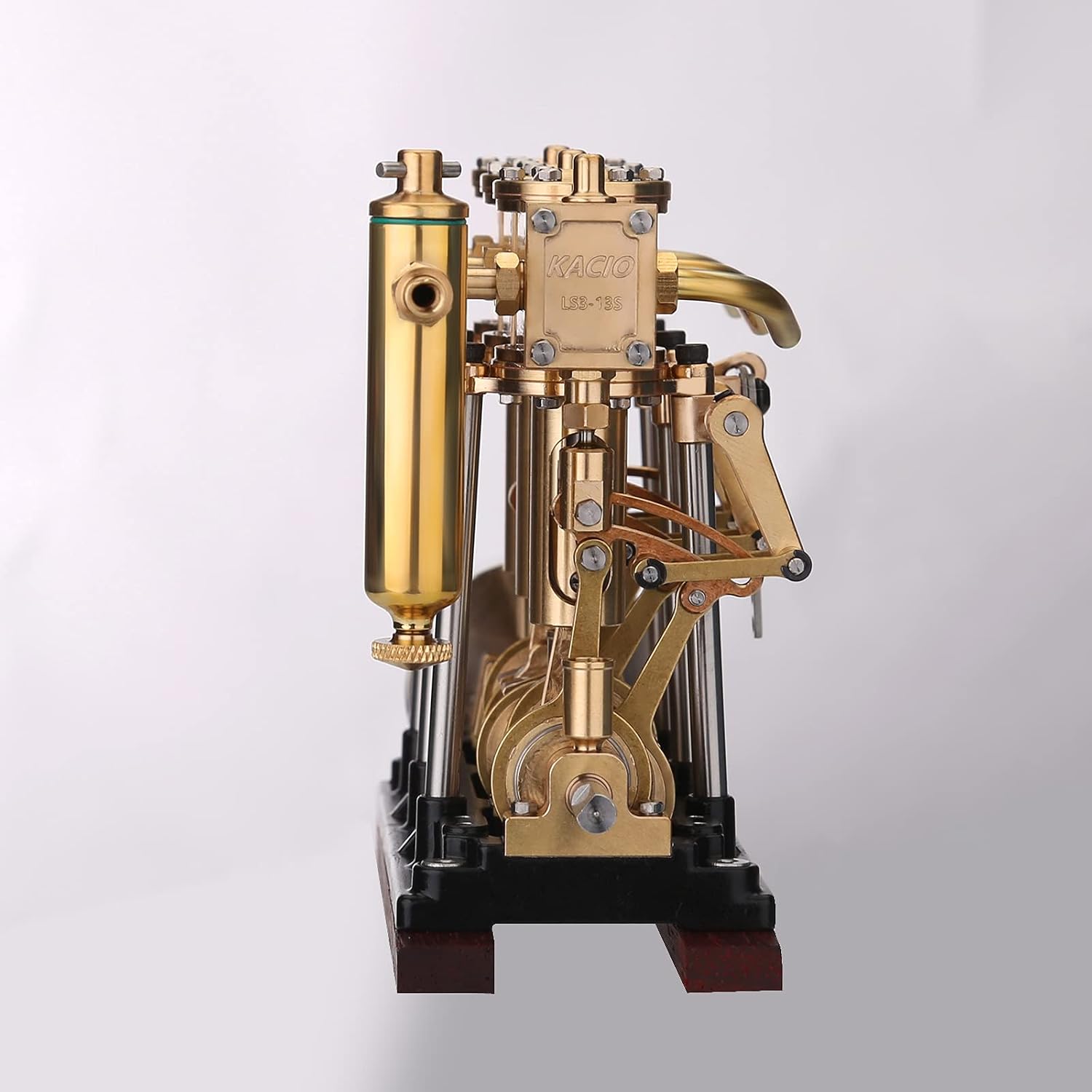

Engine Model Kit That Works, Vertical Three-cylinder Reciprocating Steam Engine Model with Oil Cup Support Forward and Reverse Rotation for 80-120CM Steam Model Ship (Boiler Not Included)

LS3-13S Vertical Three-cylinder Reciprocating Steam Engine Model with Oil Cup Support Forward and Reverse Rotation Suitable for 80-120CM Steam Model Ship - Boiler Not IncludedSpecifications: .Material: Copper .Model: LS3-13S .Size: base 48mm wide, 111mm long, 95mm high + 6mm thick sleepers .Bore: 14.0mm .Stroke: 12.0mm .Spindle diameter: 5.0mm .Spindle center ground height: 17.0mm .Operating pressure: 0.05Mpa-0.8mpa .Recommended air pressure: 0.2Mpa-0.6mpa .Inlet interface thread: M6-0.5 1/4-40 .Product Dimensions: 11.1 x 4.8 x 10.1cm .Product Weight: 930g .Package Dimensions: 21 x 16 x 16cm .Package Weight: 1200g .Packing: BoxPackage Including .1 x Steam engine model .1 x lubricating oil cup .1 x exhaust pipe .1 x manual *1

• Compact & Efficient Design: This marine three-cylinder reciprocating steam engine features a simple yet effective design, offering excellent performance in a smaller and more refined appearance
• Sturdy Construction: Precision casting base with surface electrophoresis treatment ensures non-rust properties, while CNC-finished parts improve precision and reliability; the unique ladder frame structure increases torsional resistance
• Premium Seals: The cylinder head joint is sealed with a 0.08mm copper sheet for high-temperature and corrosion resistance, while high-hardness beryllium copper bearings ensure longer, stable operation
• Enhanced Lubrication: Features an oil cup with an oil discharge function and a lubrication filling port on the piston connecting rod, providing optimal lubrication to prolong service life
• Perfect for Model Ships: Specifically designed for steam model ships between 80CM and 120CM in length, supporting both forward and reverse rotation; recommended to equip with an efficient boiler and valve accessories for optimal power (not included)
