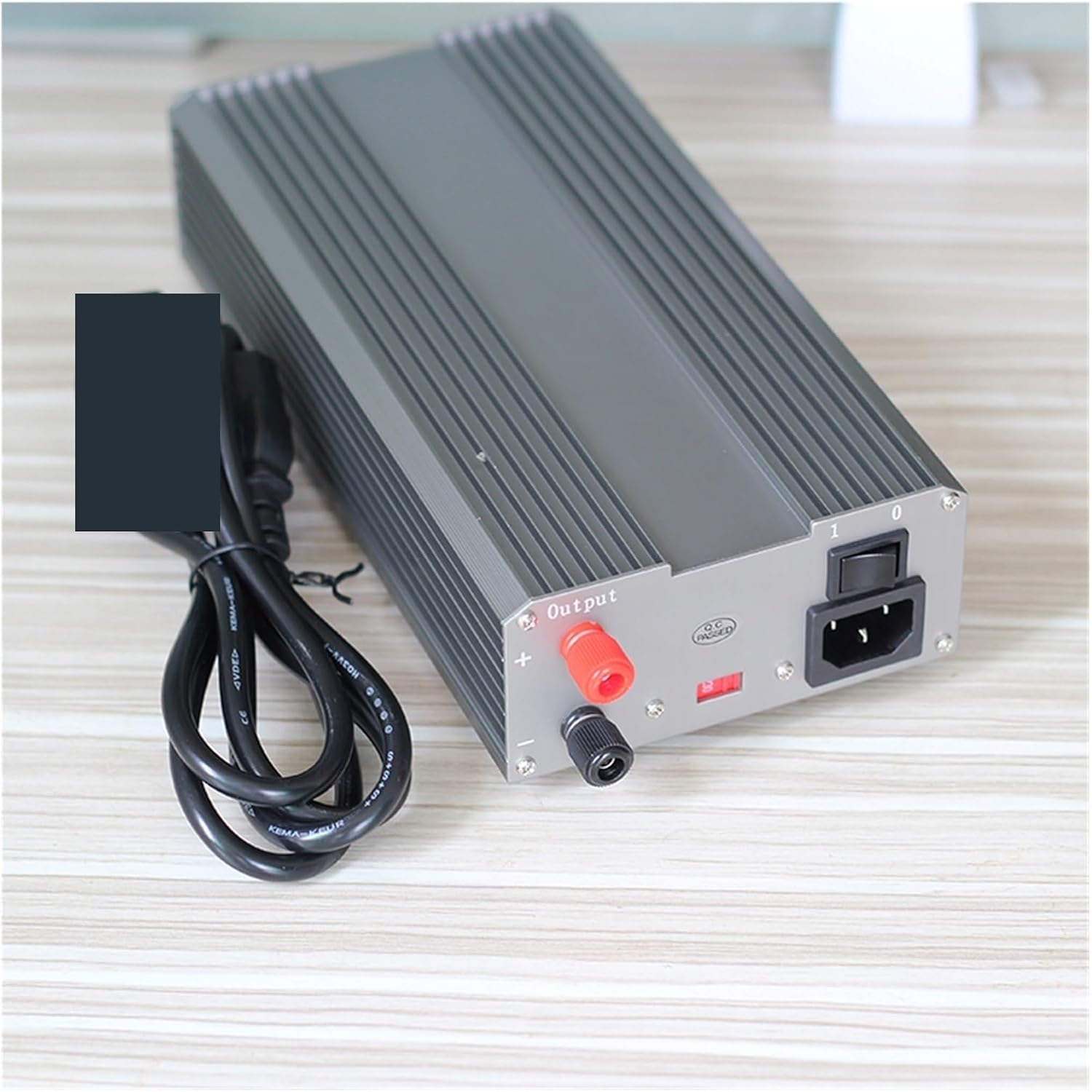

Universal Switching Power Supply, Voltage Regulators DC Switching Power Supplies Adjustable Power Supply Mini Laboratory Power Current Stabilizer

Features: High cost performance High power density, small and beautiful appearance Full aluminum housing with extremely low EMI Use encoder to adjust voltage and current, set fast and accurate Four bit digital current meter and three digit digital voltmeter Soft start function, no overshooting High efficiency, efficiency as high as 88% Low ripple noise, ripple peak below 30mV Output ON/OFF switch The lock button is used for locking the output switch button and the adjusting knob to prevent accidental change Intelligent protection: output short-circuit protection, tracking overvoltage protection (Tracking, OVP), tracking over-current protection (Tracking, OCP), over temperature protection (OTP) Specification parameter:Operating voltage range AC 100 - 264V Output voltage range 0 - 30V Output current range 0 - 10A Efficiency (220 - Vac = 88%, full load) With the input current (220 - Vac = 2.3A) The no-load input current (220 - Vac = 120mA) Voltage accuracy is less than or equal to 0.3% + 1 digits Current accuracy is less than or equal to 0.3% + 3 digit

• Small size, light weight and high power density.
• Constant pressure and constant current switch automatically.
• Adjustable Output Voltage & Current output voltage and output current can be continuously 5adjusted between 0 and nominal value with fine regulating and coarse regulating
• It has over voltage protectionOVP, over current protection(OCP), over temperature protection
• Programmable DC power supply
